DESCRIPTION
-
Part I :GNG Centrifuge Feed Pump
(Positive Displacement Pump)

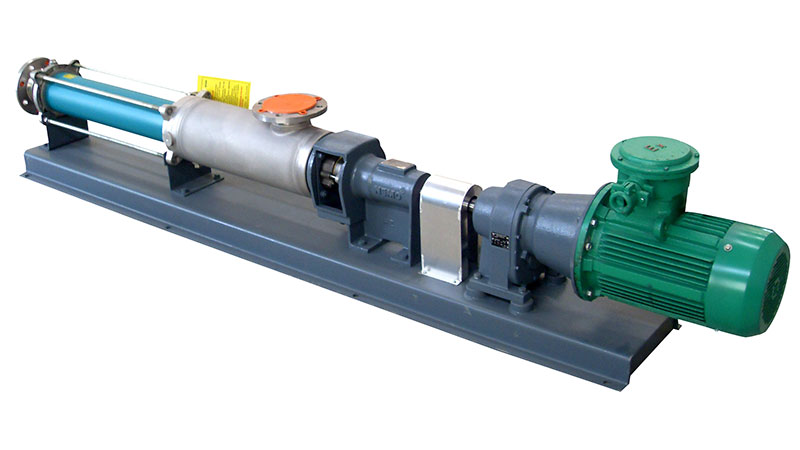

GNG Series Centrifuge feed pump is a positive displacement pump, also called screw pump. The GNG positive displacement pump is an ideal pump for feeding to decanter centrifuge without shearing or agitating the drilling mud. The main parts are screw shaft (rotor) and screw shaft bushing (stator). Because of the special geometry shape of the two parts, they form pressurize capacity separately. The fluids flow along with the shaft, inner flow speed is slow, capacity remains, pressure is steady, so it will not generate vortex and agitating.The shaft of the pump is made from Stainless steel, GNG series pump is available for option with complete stainless steel body.
GNG Centrifuge Feed Pump Technical Specs
Model Flow (m3/h) Pressure (Mpa) Motor (Kw) Max Speed (RPM) Inlet (Inch) Outlet (Inch) Weight (Kg) Dimension: L×W×H(mm) GNG10-040C 10(44GPM) 0.3 4 244 3 3 245 2245×320×550 GNG20-055C 20(88GPM) 5.5 210 3 3 323 2450×340×562 GNG30-075C 30(132GPM) 7.5 258 4 4 386 2761×370×600 GNG40-110C 40(176GPM) 11 252 5 5 454 3270×370×665 GNG50-110C 50(220GPM) 11 273 5 5 608 3790×400×782 GNG60-150C 60(264GPM) 15 225 5 5 649 3322×550×740 GNG70-220C 70(308GPM) 22 230 6 6 875 3740×420×785 GNG80-220C 80(352GPM) 22 283 6 6 875 3740×420×785 GNG90-220C 90(396GPM) 22 205 6 6 875 3740×420×785 The above specification and parameters for reference only. Features of GNG Centrifuge Feed Pump
GNG centrifuge feed pump can drive by coupler, or adjust the speed by using variable speed motor, Triangle V-belt, gear box,etc G series positive displacement pump iswith less accessories, compact structure, small volume, easy maintenance, rotor and stator are wear parts of this pump, it is convenient to replace. The stator is madeof elastomeric material, so it has particular advantages than other pump to transfer the fluids With high viscosity and hard suspended particles included.
Other Centrifuge feed pump
GNG Series Positive Displacement Pump is the most popular centrifuge feeding pump, but for some applications, drilling industry also use the horizontal centrifugal pump and submersible slurry pump to feed drilling mud to the decanter centrifuge.
To check horizontal centrifugal pump here: http://www.gnsolidscontrol.com/sand-pump/
Part II:YZ Centrifuge Feed Pump
(Submersible Slurry Pump)
YZ Submersible slurry pump is with structure of vertical single stage and single suction system overhung centrifugal pump,it is made of abrasion-resistant alloy,it canconvey medium with high concentration particle.There is no bearing and Gland Seal between impeller and pump body,so the slurry pump is maintenance-free and high temperature resistance,the slurry pump is the ideal centrifugal pump for
- Feeding Shale Shaker from Mud Pit for HDD Mud Recycling
- Feeding Desander Desilter
- Feeding Decanting Centrifuge
- Mining Slurry Separation System
Submersible Slurry Pump
YZ Submersible Slurry Pump (Centrifuge Feeding)
Model Flow (m3/h) Lift (m) Motor (Kw) Speed(RPM) Outlet (Inch) GN50YZ20-18J 20m³/h 18m 3kW 1450RPM(50Hz) DN50 1750RPM(60Hz) GN50YZ40-10J 40m³/h 10m 5.5kW 1450RPM (50Hz) DN50 1750RPM (60Hz) GN80YZ50-20J 50m³/h 20m 7.5kW 1450RPM(50Hz) DN80 1750RPM (60Hz) GN80YZ80-20J 80m³/h 20m 11kW 1450RPM(50Hz) DN80 1750RPM (60Hz) GN100YZ100-30AJ 90m³/h 20m 18.5kW 1450RPM(50Hz) DN100 1750RPM (60Hz) GN100YZ100-30J 100m³/h 30m 22kW 1450RPM(50Hz) DN100 1750RPM (60Hz) GN100YZ100-30ZJ 120m³/h 31m 30kW 1450RPM(50Hz) DN100 1750RPM (60Hz) GN100YZ160-38J 160m³/h 38m 37kW 1450RPM(50Hz) DN100 1750RPM (60Hz) GN150YZ250-40AJ 200m³/h 30m 45kW 1450RPM(50Hz) DN150 1750RPM (60Hz) GN150YZ250-40BJ 250m³/h 40m 55kW 1450RPM(50Hz) DN150 1750RPM (60Hz) Slurry Pump Model Meaning: 80－YZ80-20A
YZ - Vertical Submersislbe slurry pump
80 – Pump outlet diameter (mm)
80–Pump design flow rate (m ³/h)
20 –Pump design head (m)
A –Impeller first to be cut lessPump's drive type: The slurry pump is connecting through the flexible coupling and the electric motor, the pump direction of rotation is clockwise from the prime move
YZ Submersible slurry pump structure
YZ Slurry Pump is the cantilever pump structure of single stage and single suction, with the bearing housing, supporting, intermediate pipe connecting the pump hydraulic components, the water is discharged out from the drain pipe parts, pump impeller is for semi-shrouded with the agitating vane on the vane extended, the main characteristic of this pump is the underwater pump shaft parts have enough rigidity, the impeller and pump shell have no bearings, no shaft seal, which can transport the greater medium of solid particles. The length of inserting the water by slurry pump is between 800 and 2000, the suction pipe can be matched in case of need. The shaft seal runs into the underwater pump without setting up the shaft seal, drive should be installed the vertical motor on the supporting seat connecting with coupling and pump.
Buy submersible slurry pump from China manufacturer,GN Solids Control system submersible slurry pump.Mud tank submersible slurry pump.Your best submersible slurry pump for drilling mud circulation system and decanter centrifuge feeding.
