ViST Vacuum Shale Shaker
ViST Vacuum Shale Shaker
Categories:
Solids Control.DESCRIPTION
-
ViST is Vacuum Shale Shaker Technology is the primary solids control equipment to reduce drilling waste and recycle drilling fluids.
Learn MoreCheck Same Video on GN Youtube

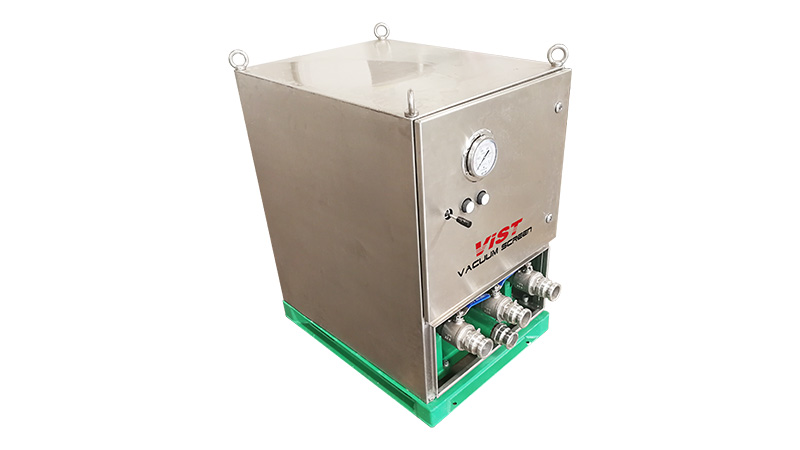

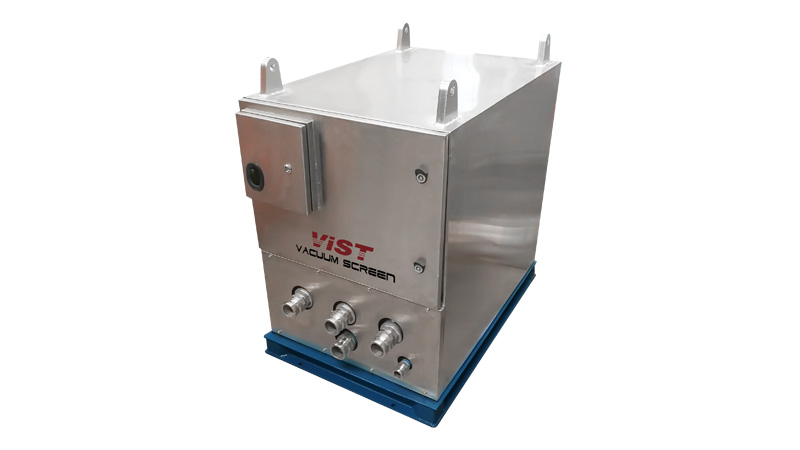

The ViST Pan is installed under the last screen or mounted externally. And a suction hose is connected to ViST vacuum unit. The compressed air from air compressor or the rig air supply is required to create suction on the last screen surface, pulling additional fluid off the cuttings. It can reduce the liquid on the cuttings by 30-50%.
In a result ,ViST maximizes the volume of recovered and reused fluids and it provides dryer cuttings. Dryer cuttings mean less drilling waste and more recovery drilling fluids. So ViST can save money for operators on drilling fluids and waste management.
ViST Vacuum Shale Shaker Specification
Item Specs (Model No.: GNVIST03A) Supply Air Pressure 0.7-1.0Mpa (100-150PSI) Air capacity required 4.5 m³/min (160 CFM) Maximum Shakers 3 Shakers Applicable Mud OBM,SBM,WBM Extra Fluids Recovery 2000-3000 L / Day (By 1 Shaker with ViST On) Recovery Efficiency 30%-50% Mud Temperature -15 +85°C Suction Inlet 2 Inch (3 Sets) Discharge Outlet 2 Inch (1 Set） Air Supply Inlet 1 Inch Dimension (Weight) 1058x730x1068mm (350KG) Remarks No. Electrical, Air operated, adjustable suction time The above specification and parameters for reference only. ViST Vacuum Shale Shaker Advantage:
- Widely application for OBM, SBM, and WBM.
- Both onshore and offshore application to reduce waste and recovery fluids.
- To replace High G drying shale shaker without any extra consumption of shaker screens.
- Less foot print and easy installation without welding.
- Reduce waste by 30% to 50%
- Finer shaker screen can be used to improve the solids control efficiency.
- Less cost for drilling cuttings transportation
- No electric power required, suitable for work in Hazardous area.
- The suction and discharge time is adjustable according to different drilling conditions.
- One ViST can be connected to 2 – 3 shakers with only one air supply to the ViST Vacuum unit
