Mud gas separator

Mud gas separator

Well drilling Mud gas separator,China drilling fluids poor boy degasser supplier for solids control,oilfield best price drilling mud gas separator
Categories:
Solids Control.

DESCRIPTION

ZYQ series Mud gas separator(Poor Boy Degasser) is professional equipment to treat the gas invade mud. When the drilling mud result gas invade, the proportion of its weight and viscosity have a greater deviation not to meet the requirements of drilling. The serious situation is that would cause Chung well, and even blowout accident occurred, if not to treat it timely. ZYQ series Mud gas Separator combined with the Electric Ignition Device can be used to ensure the drilling process smooth. It is devided into the normal pressure Mud gas separator and pressure auto-control Mud gas separator, according to the pressure.Mud gas Separator is your best choice to prevent drilling mud invasion.

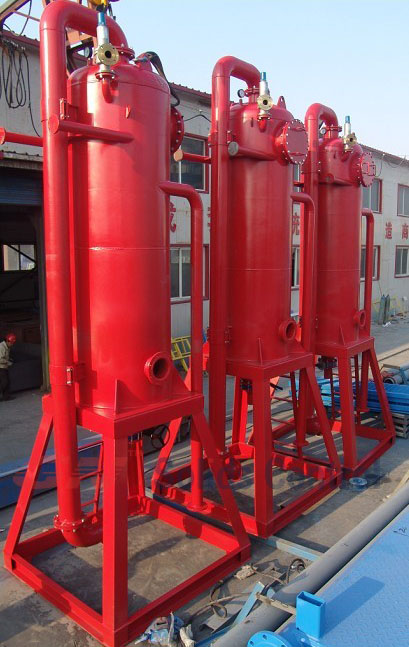

Mud gas separator photo

Mud Gas separator Mud Gas Separator

ZYQ series Mud gas separator Technical Parameters

Model GNZYQ1000A
Tank diameter 1000mm
Capacity 200~280m3/h
Inlet 4 Inch
Output  10 Inch
Vent Line 8 Inch
Weight 2234Kg
Dimension: L×W×H 2265×2000×5681mm
The above specification and parameters for reference only.

Mud gas separator for drilling fluids solids control

Mud gas separators in other countries also called Poor boy degasser,Liquid-gas separators,Mud/Gas Separators, etc.GN Solids Control  designs and manufactures ZYQ Mud gas Separators. Mud gas Separators is an extremely reliable, vital piece of safety equipment for today’s drilling operations. It is ideal for use where drilling is likely to encounter large volumes of gas, sour gas or when an operator is drilling with an under balanced mud column. This Mud gas Separators is primarily used to separate and safely vent large pockets of free gas, that may include toxic gases such as hydrogen sulfide, etc. from the drilling fluids processing system.
