HDD & CBM Mud Recycling System

HDD & CBM Mud Recycling System

Mud Cleaning System.


Mud Recycling System for HDD and CBM drilling rig.

GN Solids Control is a top manufacturer of Horizontal Directional Drilling(HDD) Mud Equipment/HDD Mud Recycling System.GN drilling mud recycling system has been applied in many countries for HDD and CBM drilling operation.Especially popular in Australia ,Indonesia, India etc.With GN Solids America branch and GN Australia Partner, GN provide mud recycling system service and spares from Beijing, Houston, and Brisbane.

G Series Self-Contained Mud Recycling System

TypeSelf-Contained Mud Recycling System
Function Mud Recycling, Mud Mixing, and Mud Storage
Model GNMS-200B GNMS-400B GNMS-600B GNMS-800B
Capacity 200GPM 400GPM 600GPM 800GPM
45m³/h 90m³/h 136m³/h 180m³/h
Separation Shaker and Desilter 3 Stage
Cut Point 20 Microns
Power 24.4KW 44.8KW 70KW 147KW
Volume 5m³ 8.5m³ 15m³ 19.5m³
The above specification and parameters for reference only.

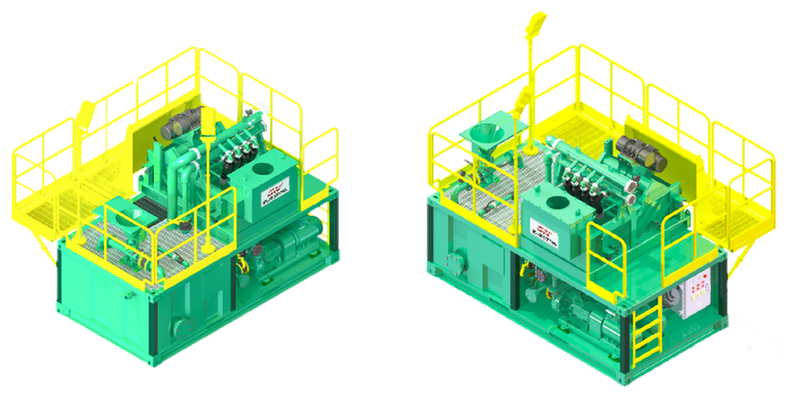

GNMS-200B Mud Recycling System


GNMS-600B Mud Recycling System

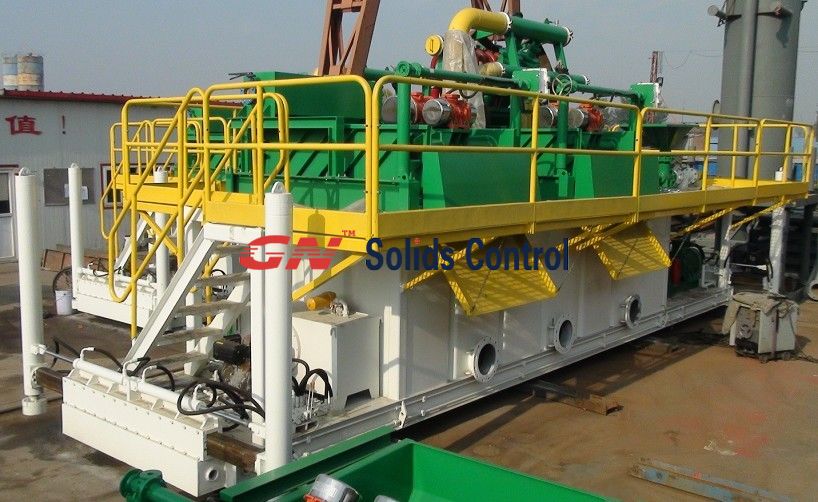

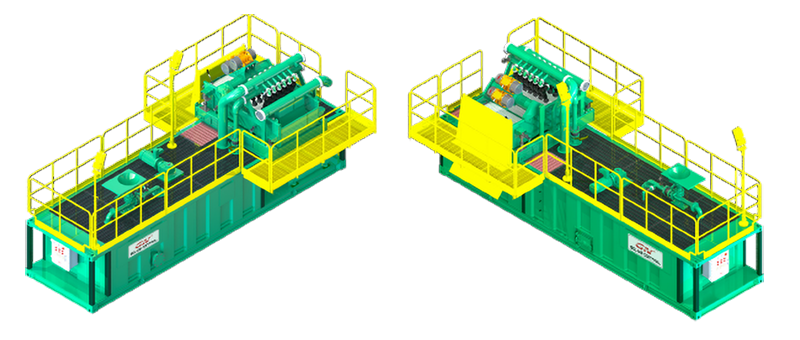

GNMS-500GL Mud System

Features of GN HDD CBM  Mud Recycling Equipments

  • Complete line Mud System: GNMS-200GPM / GNMS-350GPM / GNMS-500 GPM / GNMS-1000GPM / GN1500 GPM Self-Contained Mud Recycling System.
  • Cost Effective Equipments integration:Complete drilling mud equipments from a single source-GN Solids Control Factory.
  • Fast moved compact system:Small footprint design with fast connection for removable parts and most parts fixed while traveling meet transport regulation.
  • Assured customer service:We can send our experienced engineers for installation,and training up customer engineers.
  • Mud Tanks Flexible Options:Skid Mounted or Trailer Mounted or Hydraulic Jack Up mud recycling Tanks available for your options.

GN Mud Recycling System Case Study

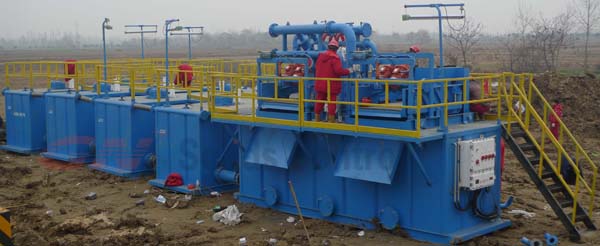

Hydraulic Jackup Mud Recycling System

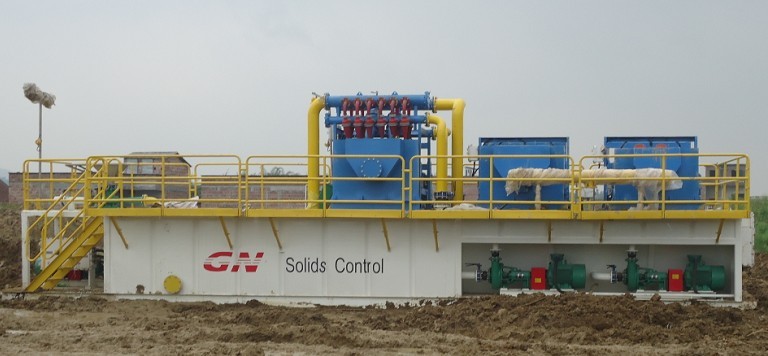

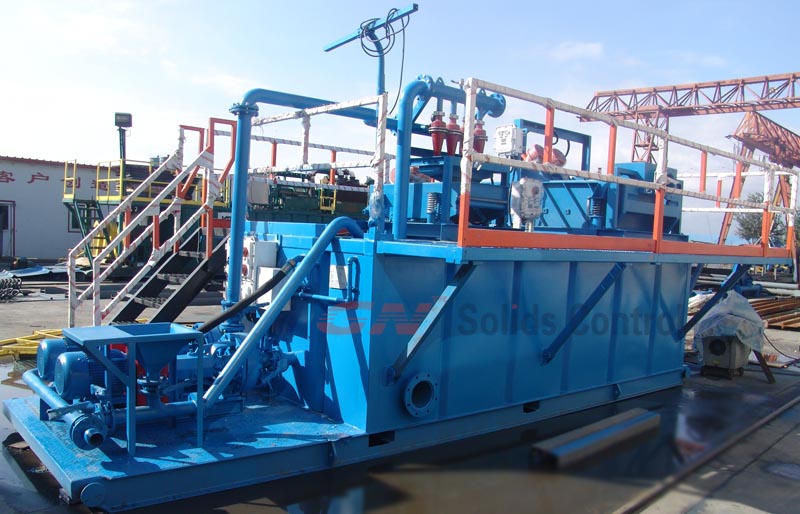

800GPM Mud Recycling System

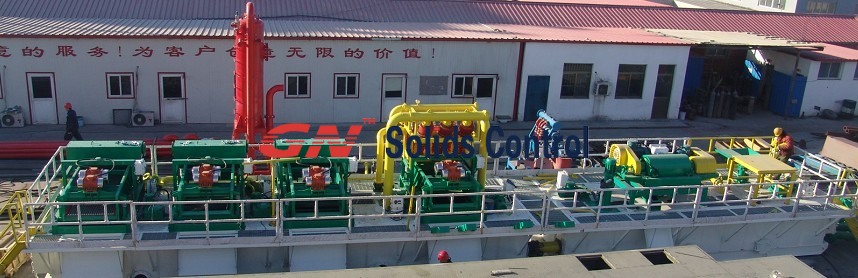

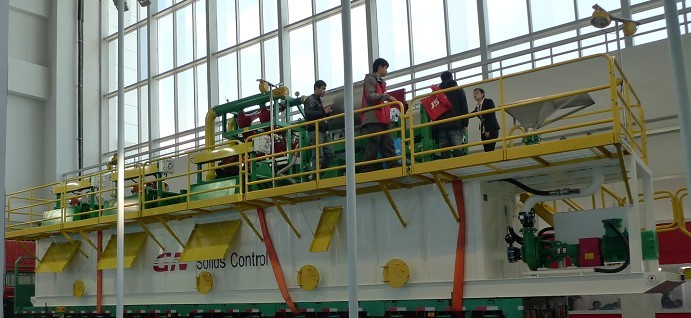

1500 GPM Drilling Mud Recycling System

Configurations of GN drilling mud recycling system

  • Mud Recycling Tank, drilling mud mixing tank with attachments like walkways, handrails, mud clean gate.
  • Shale Shaker for first phase mud recycling equipment of solids upper 100 microns.
  • Desander for the second mud cleaning of separation solids uppper  50 microns.
  • Desilter is the third phase mud recycling equipment of separation solids upper to 20 microns.
  • Decanter Centrifuges is the fourth phase mud recycling equimpent for separation of solids uppper 2 to 5 microns.
  • Mud Agitators, Mud guns, Mud mixing pumps,and drilling mud transfer pumps for the mud recycling unit.

Besides the standard drilling mud recycling system, GN also provide customized mud recycling system accordling to drilling contractors applications.
