Desilter
Desilter
Categories:
Solids Control.DESCRIPTION
-
GN desilter is the third class solids control equipment to treat the drilling fluids. According to the size of the cone diameter, they are divided into Desander and Desilter. Usually the cone diameter is less than 6″is called Desilter, and used as the third-control equipment in drilling operation. We commonly used 5 "and 4" cone to separate solid-phase particle size 15-47μm in the drilling fluid. Based on customer requirements and capacity, we can select groups of cone into Desilter.GN Desilter works very well with Solids control system other equipments.
Desilter Options for different Application
Desilter : Cut Point+20 MicronsDescriptionType: Desilter without downstream drying shale shaker Model: GNWS-12NJ / GNWS-16NJ Application: For oil gas drilling un-weighted drilling mud. Features: - Small footprint
- economic choice
- no consumable screens

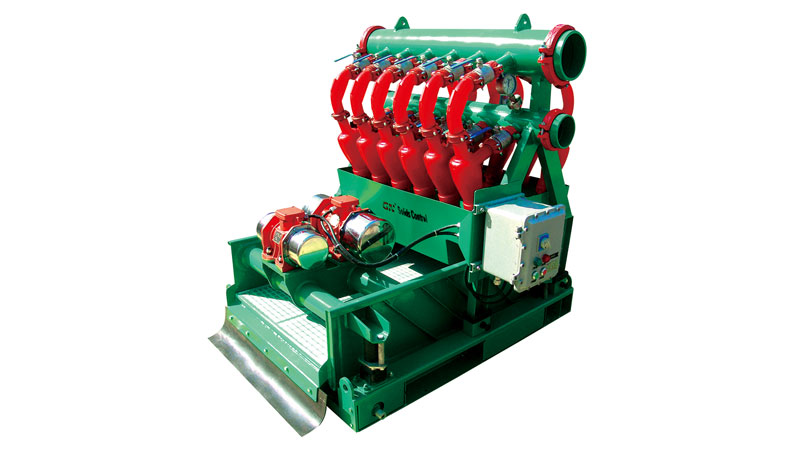

Result: Wet cuttings, not recommended for Weighted mud and drying solids. Type: Desilter with GNZS752 Series Mini Shale Shaker Screen Area:1.4m² Model: GNZJ752J-8NJ / GNZJ752J-12NJ Application: For oil gas drilling small drilling rig , CBM drilling, HDD, Water Well drilling. Features: - Small footprint
- economic choice
- acceptable drying solids

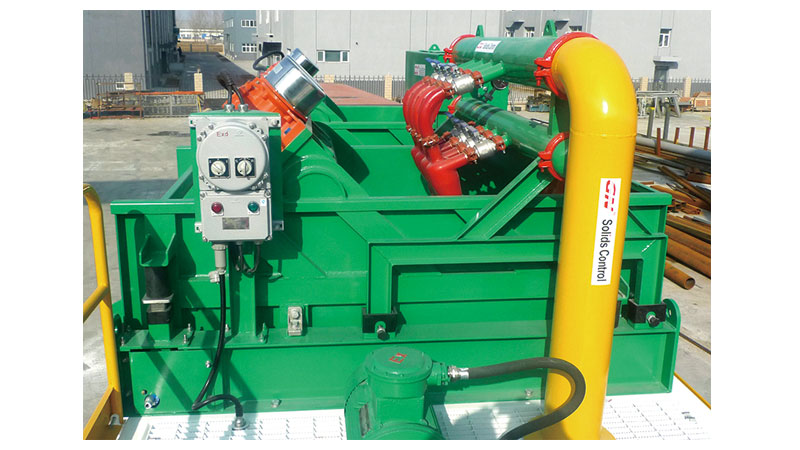

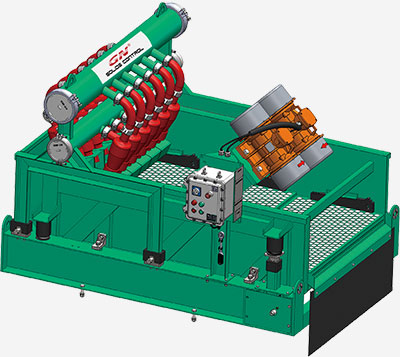

Type: GNZS594 series large underflow vibrating screen matched with 4 mesh screens, with a mesh area of approximately 2.73 square metersSquare meters. Model: GNZJ594J-12NSJ/GNZJ594J-16NJ Application: large oil rig, large trenchless drilling rig, shield engineering, river dredging engineering, etc. Features: Large processing capacity, and the processed drilling cuttings are very dry. GN Desilter Technical Parameters
Model GNZJ752J-8NJ/12NJ GNZJ594J-8NJ/12NJ GNZJ594J-16NJ GNWS-12NJ/16NJ Capacity 120/240m3/h 360m3/h
(1584GPM)240/360m3/h
(1056/1584GPM)Desilter Size 4″ Desilter Qty 8/12 Pcs 16 Pcs 12/16 Pcs Working Pressure 0.25~0.4Mpa Feeding Size DN150 Output Size DN200 Bottom Shaker Specs. Shaker Model GNZS752J GNZS594J N/A Vibration Mode Linear Motion Vibration Motor 2x0.75Kw 2x1.72Kw Screen Qty 2 Panels 4 Panels Screen Size 750x900mm 585x1165mm Screen Area 1.35m2 2.73 m2 Adjust G Force ≤7.1G(Adjustable) ≤7.5G(Adjustable) Deck Angle Range +2° -1~+5° EX Standard ExdIIBt4/IECEX/A-TEX Weight 1057/1097kg 1813/1839kg 1974kg 504/539kg Dimension: mm 1676×1745×1719 2462x2042x2147 2462x2042x2147 2189×900×1511 The above specification and parameters for reference only. GN Mini Mud Desilter
The GN Mini Mud Cleaner is innovative products for drilling fluids cleaning. The traditional desander desitler without Shale Shaker is only available for unweighted drilling mud.The traditional mud cleaner is oversized for some applications,and the mud cleaner is relatively more expensive. The innovative GN Mini cleaner is an ideal option for both weighted and unweighted drilling mud with the most cost effective solution for drilling. Further more, the GN Mini Cleaner is the best choices for small mud system for HDD,CBM, water well drilling, mining exploration industry etc.
Desilter for drilling mud
We are a China exporter of desilter and desander equipments for Indian, Russian,middle east.etc.Oilfield Company of the United States and Century Int'l Oilfield Equipments LLC of the United Arab Emirates etc. choose us as desilter supplier.Our factory and company are Quality Management System ISO 9001-2000 certified.GN Solids Control operate international oil gas drilling mud separation system sales,service,manufacturing,distribution serivce.Buy desilter from China manufacturer,good quality,best price..Your best hydrocyclone desilter for drilling mud circulation system.
