9 Inch (220) Decanter Centrifuge – Mini Centrifuge
9 Inch (220) Decanter Centrifuge – Mini Centrifuge
The 9 Inch Decanter Centrifuge is a Mini centrifuge with small size for industrial application.
The bowl of the centrifuge is 9 inch (220mm). As the compact design, it’s popular for client to use it in small capacity or limited space application for solids and liquid separation
Categories:
Decanter Centrifuge.DESCRIPTION
-
The 9 Inch Decanter Centrifuge is a Mini centrifuge with small size for industrial application.
The bowl of the centrifuge is 9 inch (220mm). As the compact design, it's popular for client to use it in small capacity or limited space application for solids and liquid separation. It is also considered to be the ideal choice for experiment testing with decanter centrifuge. GN 9 inch decanter centrifuge is optional in three types includes: fixed gear box drive, fully hydraulic drive, and variable frequency drive.
Popular Applications
- Industry Waste Water Treatment.
- Diamond Core Drilling Fluids Treatment.

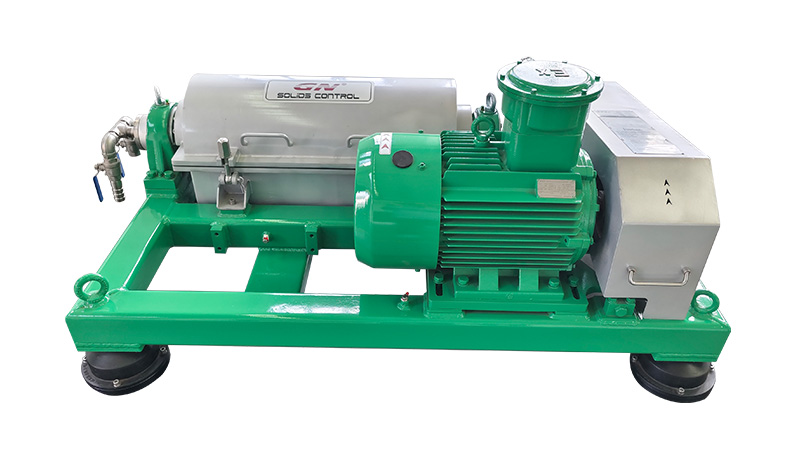

9 Inch Decanter Centrifuge Photos
9 Inch (220) Decanter Centrifuge Specifications
Model GNLW223D GNLW224G-VFD Drive Type Fixed Speed VFD Adjustable Speed Bowl Diameter 220 mm (9 Inch) 220 mm (9 Inch) Bowl Length 670 mm(26.4 Inch) 924 mm (36.4 Inch) Max Speed (G force） 4500 rpm(2492G) 5054rpm(3200G) Typical Speed (G force） 3800rpm(1777G) 0-4500rpm(2492G) Max Capacity 130 L/min 130 L/min Typical Capacity 100 L/min 100 L/min Dewatering Capacity 1-2 m3/h 1-2 m3/h Main Motor 11 KW 11KW Back Motor N/A 5.5 KW Remarks •The above parameters are for reference only, and the final technical agreement shall prevail.
