Following is desander for two different industry and system, Part 1 two desanders are for oil gas drilling, CBM drilling mud solids control. Part 2 desander system with mud tank is for contruction operation for No dig, Bored Pile drilling deander for bentonite recycling.
Part 1: Desander for Oil Gas drilling & HDD
GN desander is the second class and the third class solid control equipment to treat the drilling fluid. According to the size of the cone diameter, it is divided into Desander and Desilter. Usually the cone diameter is more than 6″is called Desander, and used as the second-control equipment in drilling operation. We commonly used 8 "and 10" cones desander to separate solid-phase particle size 47-76μm in the drilling fluids
Desander Options for different Application
Desander Cut Point: + 40 MicronsDescription

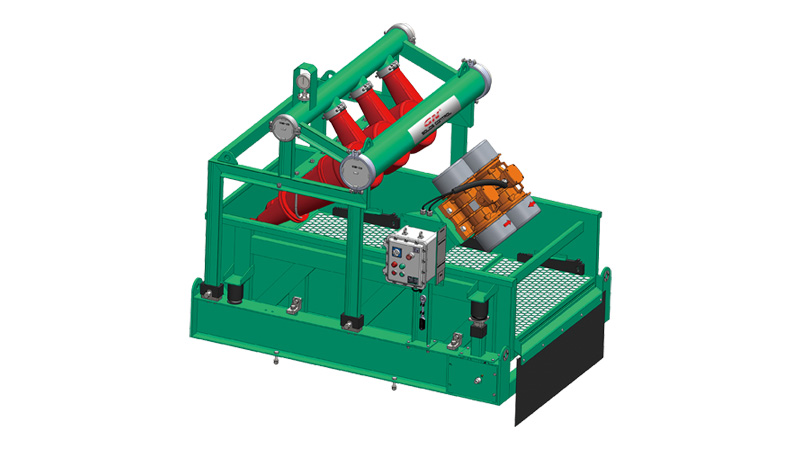

Type: Desander without downstream drying shale shaker Model: GNWS-2SJ / GNWS-3SJ Application: For oil gas drilling un-weighted drilling mud. Features: - Small footprint
- economic choice
- no consumable screens
Result: Wet cuttings, not recommended for Weighted mud and drying solids.

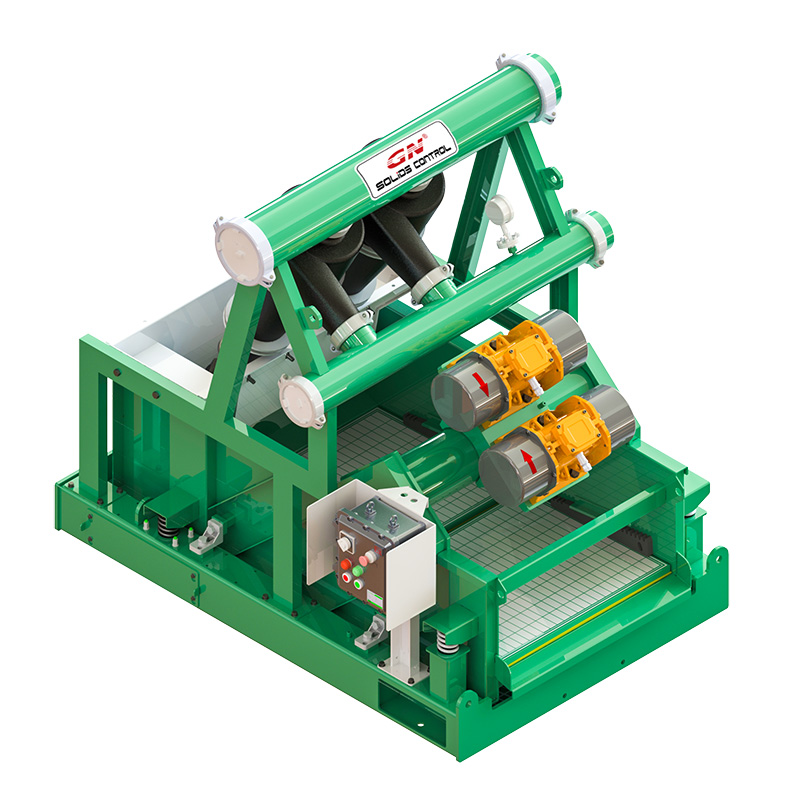

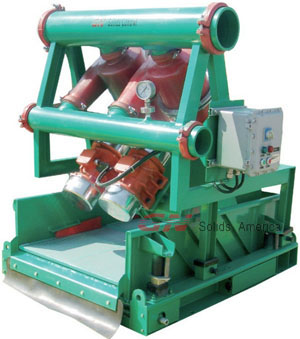

Type: Desander with GNZS752 Series Mini Shale Shaker Screen Area:1.4m² Model: GNZJ752J-1S / GNZJ752J-2S Application: For oil gas drilling small drilling rig, CBM drilling, HDD, Water Well drilling. Features: - Small footprint
- economic choice
- acceptable drying solids

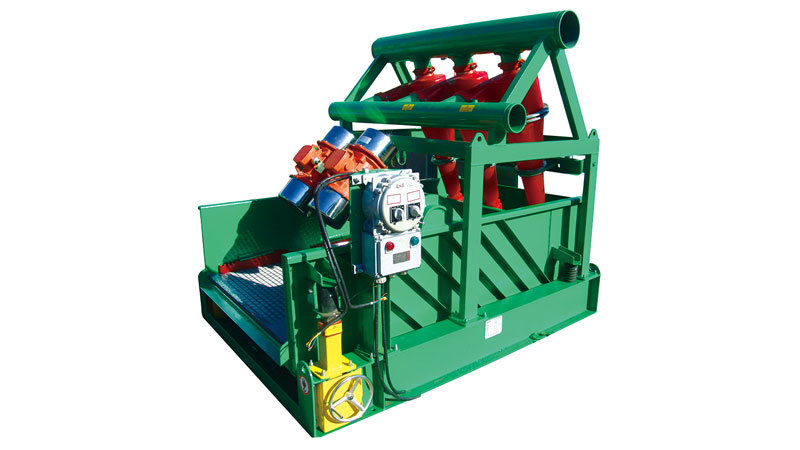

Type: Fixed with 4 pcs screens, GNZS594 series large shaker has the screen area of esrt. 2.73 square meters. Model: GNZJ594J-2SJ/GNZJ594J-3SJ Application: large oil rig, large trenchless drilling rig, shield engineering, river dredging engineering, etc. Features: Large processing capacity, dry discharged drilling cuttings. GN Desander Technical Parameters
Model GNZJ752J-1S/2S GNZJ594J-2SJ GNZJ594J-3SJ GNWS-2SJ/3SJ Capacity 120/240m3/h
(528/1056GPM)240m3/h
(1056GPM)360m3/h
(1584GPM)240/360m3/h
(1056/1584GPM)Desander Size(Inch) 10″ Desander Qty 1/2 Pc 2 Pcs 3 Pcs 2/3 Pcs Working Pressure 0.2~0.4Mpa Feeding Size DN150 Output Size DN200 Bottom Shaker Specs. Shaker Model GNZS752J GNZS594J N/A Vibration Mode Linear Motion Vibration Motor 2x1.0Kw 2x1.72Kw Screen Qty 2 Panels 4 Panels Screen Size 750x900mm 585x1165mm Screen Area 1.35m2 2.73m2 Adjust G Force ≤7.1G(Adjustable) ≤7.5G(Adjustable) Deck Angle Range +2° -1~+5° EX Standard ExdIIBt4/IECEX/A-TEX Weight(Kg) 1059/1114kg 1835kg 1924kg 502/559kg Dimension: mm 1676×1754×1822 2462x2042x2147 2462x2042x2147 2177×1000×1901 The above specification and parameters for reference only. GN Mini Mud Cleaner(Desander)
The GN Mini Mud Cleaner is innovative products for drilling fluids cleaning. The traditional desander desitler without Shale Shaker is only available for unweighted drilling mud.The traditional mud cleaner is oversized for some applications,and the mud cleaner is relatively more expensive. The innovative GN Mini cleaner is an ideal option for both weighted and unweighted drilling mud with the most cost effective solution for drilling. Further more, the GN Mini Cleaner is the best choices for small mud system for HDD,CBM, water well drilling, mining exploration industry etc.
Desander for Oil drilling mud
Hydrocyclones is also called cyclone separator.Hydrocyclones consist of desander(10 in. cone) and desilter(4 in. cone)are drilling rig equipments with a set of hydrocyclones that separates sand and silt from the drilling fluid. Desander is installed after shakers and degasser but before desilter. Desander removes those abrassive solids from the drilling mud which cannot be removed by shakers.
Desander, as stated earlier, have no moving parts. The larger the internal diameter (ID) of the desander is, the greater the amount of fluid it is able to process and the larger the size of the solids removed. Desander (10 in.cone) are able to remove roughly 50 percent of those solids within the 40-50 micron range at a flow rate of 500 gallons per min (gal/min), while desilter (4 in. Cone) are able to remove approximately 50 percent of those solids within the 15-20 micron range at a flow rate of 60 gal/min. Micro fine separators are able to remove around 50 percent of those solids within the 10-15 micron range at a flow rate of 15 gal/min. Desander is typically positioned next-to-last in the arrangement of solids control equipment, with decanting centrifuge as the subsequent processing unit. Desander are preceded by gas busters, gumbo removal equipment (if utilized), shale shakers, mud cleaner (if utilized) and vacuum degasser.Desander is widely used in oilfield drilling.
Part II: Desander Plant for Bored Pile and TBM

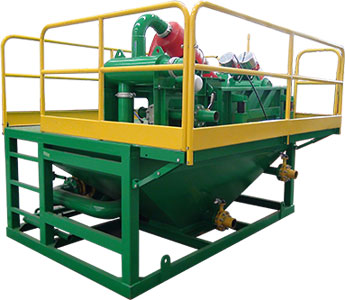

Bored piles are cast in place cylindrical piles excavated either by use of rotary equipment operated augers , buckets, under static drilling fluid or large drill bit (for hard rock) with reverse circulation.The reason to use desander unit is that Bored piles installed in common soil with the presence of water table, generally require the use of a short temporary steel casing and a drilling fluid as static suspension to provide support to the surrounding soil while excavating the pile and until complete backfill of the pile excavation with concrete, in order to prevent cave-in of the excavation and destabilizing the surrounding soil formation.GN Bored Pile desander is to separate the sands from the drilling fluids and recycling the drilling fluids for use.
Read more for GN Desander
GN is a China desander manufacturer with location in Houston, USA, and partners around the world.,solids control system desander,drilling fluids,drilling fluids desander..Your best solids control service!Your best Hydrocyclone Desander for drilling mud circulation system.
