February 11 2011

We deliveried 2 set of shield drilling mud treatment system to Hongkong at the last part of Jan in year 2011.SD400 shield drilling mud treatment system for 400 cubic meter per hour treating capacity and SD250 shield drilling mud treatment system for 250 cubic meter per hour treating capacity

SD400 Shield Drilling Mud Treatment System

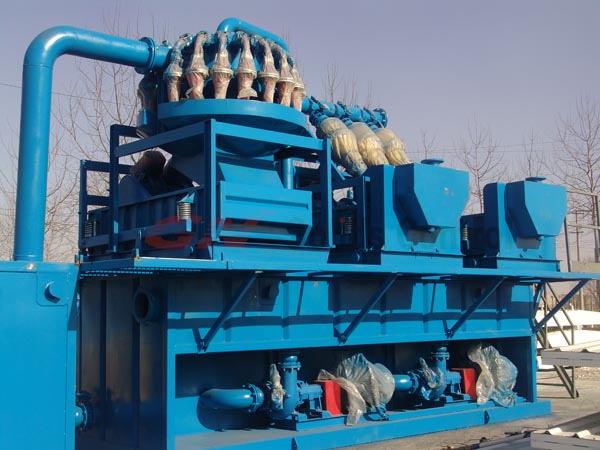

Shield Drilling Mud Treatment System

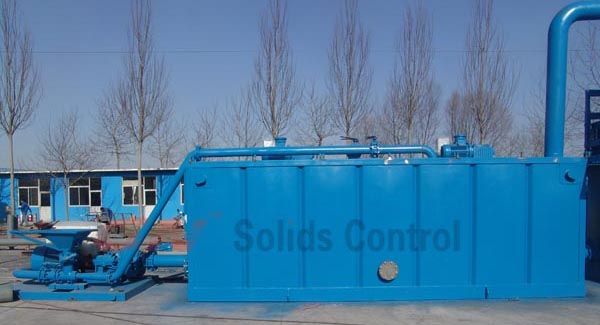

Shield Drilling Mud Treatment System to Hongkong


This shield drilling mud treatment system is composed of 3 classes solids control stages. The first stage consists of GNZS83-3 shale shaker for screening; the second stage consist of  ZQJ300×3 desander , the third stage is consist of ZQJ125×18 desilter, 2 sets sand pump. The main working principle is using sand pump to supply sufficient power for the cyclone, then the drilling mud can enter the cyclone for centrifugal separating. The drilling mud has been refined. This system capacity reaches to 400 cubic merters per hours.

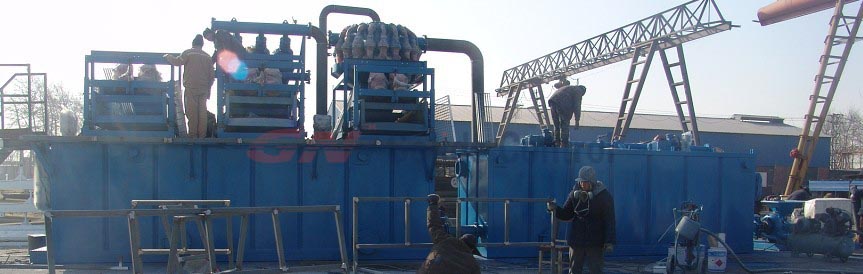

Shield Drilling Mud  System

SD250 Shield Drilling Mud Treatment System

We designe and manufacture SD 250 shield drilling treatment system according to clients requirements. It can adapt with shield drilling cycling system. Its handling capacity can reach up 250m3/h.This system is composed of 3 classes solids control stages. The first stage consists of two GNZS83-3 shale shaker for screening; the second and third stage consist of 1 set ZQJ300×2/100×12 mud cleaner and 2 sand pumps. The main working principle is using sand pump to supply sufficient power for the cyclone, then the drilling mud can enter the cyclone for centrifugal separating. The drilling mud has been refined. The two shale shaker and one mud cleaner is on the first tank with dimention of 7000x2300x2100mm , One jet mud mixer on the second tank skid and three mud agitators on top of tank.

GN Brand Shield Drilling Mud Treatment System

GN is a few manufacture shield drilling mud treatment system with API & ISO certificate with a complete line . We have export to over 30 countries for solids control equipments all over the world . Please feel free to contact us if you have any questions regarding for shield drilling mud treatment equipments or for GN information.
