Mud Agitator

Mud Agitator

Drilling mud agitator,Supply drilling mud tank agitators for solids control system,GN drilling fluids agitator for mud system reliable quality,competitive price.
Solids Control.

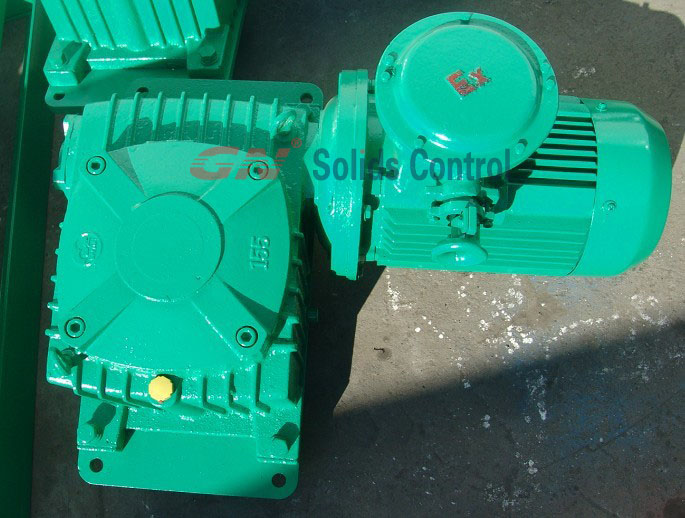

JBQ series mud Agitator, Less than 5.5 kW drilling mud Agitator adopts the blender cycloid speed reducer, and it is applied to the drug liquids mixing tank. This mud agitator  has the advantage of compact structure  so it occupies small area. More than 7.5 kW Mud Agitator uses the turbo and worm gear speed reducer, with the large torque transmission、 the  revolution is steady、it works reliablely and has great merit. Common   model of mud agitator is JBQ5.5kW 、JBQ7.5kW 、JBQ11kW and JBQ15kW.The drilling mud agitator is an important components for GN Solids Control drilling fluids processing system.

mud agitator2

JBQ Mud Agitator Technical Parameters

ModelMotor (Kw)Speed (RPM)Impeller Size (mm)RatioWeight (Kg)Dimension(mm)
GNJBQ030G 3 60/72RPM
700 25:1 160 794*440*472.5
GNJBQ055G 5.5 850 240 960*540*598
GNJBQ075G 7.5 950 260 1065*540*616
GNJBQ075GD 850+700 280
GNJBQ110G 11 1050 360 1187*540*621
GNJBQ110GD 950+700 380
GNJBQ150G 15 1100 387 1287*640*683
GNJBQ150GD 1050+850 415
GNJBQ185G 18.5 1200 530 1307*640*698
GNJBQ185GD 1100+950 560
GNJBQ220G 22 1200 602 1307*640*698
GNJBQ220GD 1100+950 630
Remarks Shaft and impeller will be provided by GN, but not including in the weight & dimension.
The above specification and parameters for reference only.

mud agitator3

GN Solids Control as a professional manufacturer for soilds control equipments, we have designed lots of high-quality products, and JBQ series Agitator is one of them. To keep both the mud uniformity and the suspension of solids, the mud agitator is used to agitate the mud consecutively and reliably.This agitator agitates the mud to make cuttings, silt and sand pass the solids control system without being precipitated onto the tank bottom. Due to the simplex turbine decelerator, this product is featured by compact construction, light weight, balanced transmission, low noise, high efficiency of transmission and strong agitating power. Therefore, it is a reliable product in the solids control system.

China manufacturer GN Solids Control offer the world with drilling mud agitator equipments.We are an exporter of drilling fluid mud agitator for Indian, Russian,middle east.etc..Our factory and company are Quality Management System ISO 9001-2000 certified.GN Solids Control operate international oil gas drilling mud separation system sales,service,manufacturing,distribution serivce.Buy  drilling fluid mud agitatorfrom China manufacturer.Your best mud agitator for drilling  mud circulation system.
