Shale shaker is the most important solids control equipment for primary solids separation, GN Solids Control keeps developing the shale shaker with the latest technology to meet the market requirements for high effiecency and easy operation. Now GN Solids Control have the shale shaker  with Electric Deck Angle Adjustment as well as mechanical deck angle adjustment for back up application.

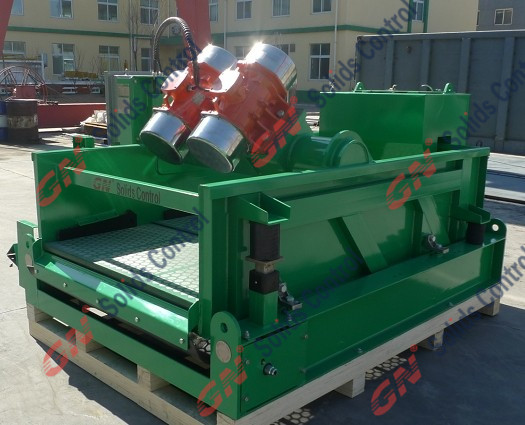

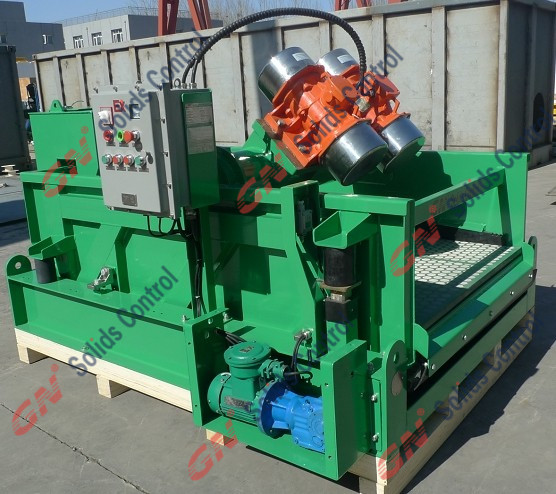

From Above photoes, we can see, one side driven by electric motor an gearbox is for electric deck angle adjustment, the other side is for mechanical deck angle adjustment. Either the electric deck angle adjustment or the mechanical deck angle adjustment can lifting or lowering down the shaker deck simultaneously.Solids Control supervisers only need to press the button on the electric control panel to adjust the shale shaker deck reliably and quickly. Even if the electric motors break down, the back up mechanical deck angle adjustment can be used without any downtime for the drilling.

For other related products: Drilling Mud Cleaner (Combination of shale shaker, desander, desilter, 3 in 1 Unit).

More features and benefits for GN Lastest Patented Shale Shaker.

• Patent tighten rubber sealing for shale shaker deck and screen, long life and easy replacement.
• Shale shaker bottom deck made from Stainless Steel for long service life.
• Heat treatment on complete shale shaker deck for High G force operation.
• Pretensioned shale shaker screen for fast screen replacement
• Famous Brand Vibration Motors : IEC Ex, ATEX and UL Certified
• Electrical components: SIEMENS, Schneider Brand
•  Flexible feeding type including Weir Feed, Top Feed, and Hopper Feed for different applications.
• High G force up to 8.0 G for primary solids control or used for drilling cuttings drying shale shaker.
