GN Solids Control has been designing and building solids and liquid separation separation systems for many years. GN customers are widely located in the whole world. Lately, GN Solids Control finished manufacturing of one set small flow rate Solids Liquid Separation Unit for one European controllable drilling equipment provider.

 2020.09.23 Solids Liquid Separation Equipment

GN Small Solids Liquid Separation Unit mainly includes the following treating components:
1.GN Mini Shale Shaker
GN made smallest shale shaker uses 2 pieces shaker screens, with compact design and strong vibration force GN mini shale shaker is able to remove most of the coarse solids.
Stainless steel shaker deck protect the shale shaker from long time running rusty. GN made shaker screens are all comply with API RP 13C standard.

2020.09.23 Solids Liquid Separation 1
2.GN 9 inch Decanter Centrifuge
GN Solids Control builds different bowl sizes of decanter centrifuges, include 9’’, 14’’, 18’’, 22’’ and 30’’. Here GN Solids Control uses the smallest baby centrifuge GNLW223 to remove fine sand/silt from the drilling mud after discharged by shale shaker.
In some projects, GN Solids Control also provides GNLW224, it has longer rotating bowl compared to GNLW223. GNLW224 flow rate is 1.5 times of GNLW223 when treat the same slurry/mud.
3.GN Screw Pump

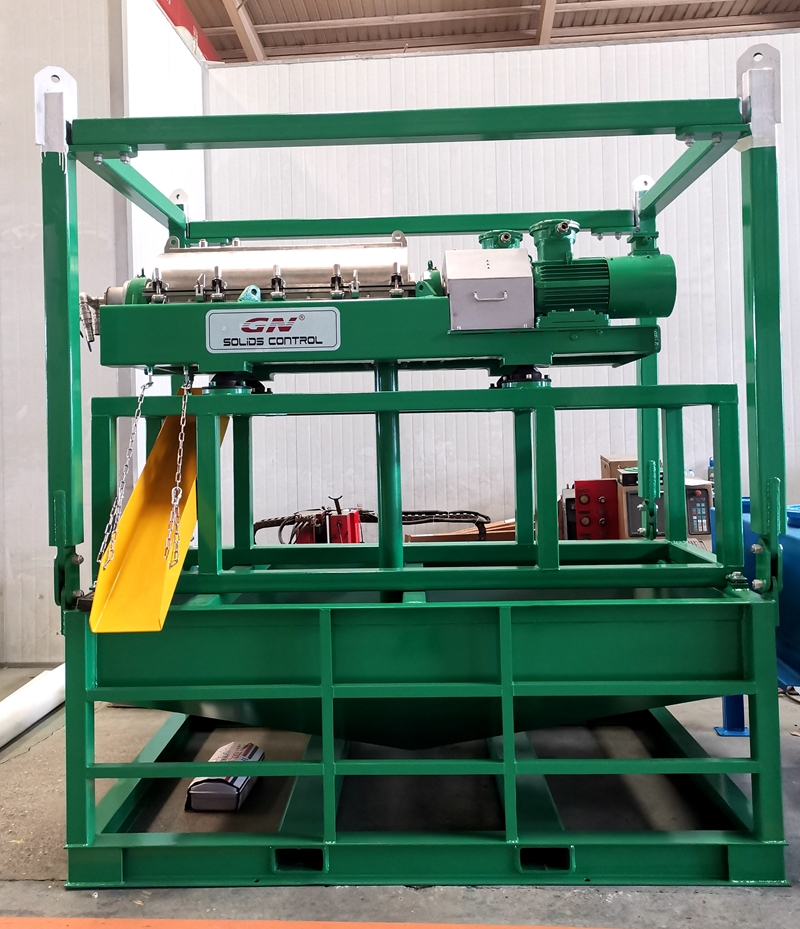

Usually screw pump is used to feed decanter centrifuge, although sometimes submersible pump is also used. GN Screw Pump main transmission body is made by Germany Netzsch. 2020.09.23 Decanter Centrifuge Skid
4.GN Mud Tank
GN mini shaker GNZS752 and GN 9 inch centrifuge GNLW223 are all fixed on the top of the mud tank, which is designed and manufactured with lifting pads for convenient move. While the screw pump is located on the side of the mud tank to save the working room.
GN Solids Control also provides customized painting for this whole system. Any tough job GN is confident to provide a cost-effective solution, welcome to connect with GN sales for a most suitable solution.
