Oil Water Separator

Oil Water Separator

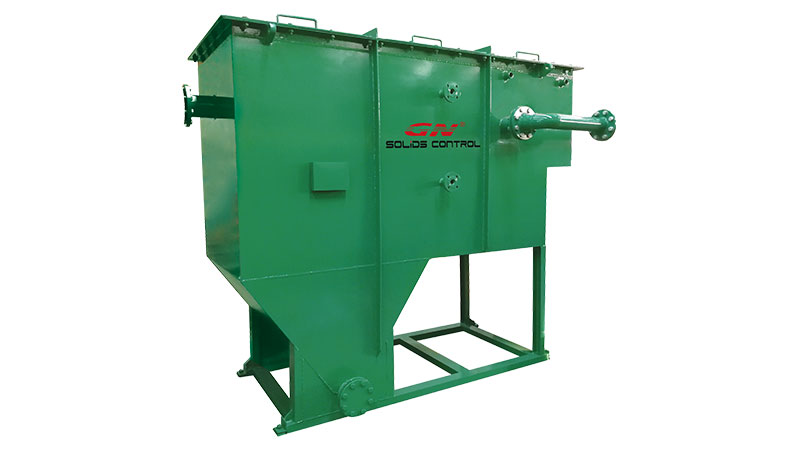

GNOWS series oil water separator separates the oil and water by gravity stratification, its main application is the separation of oily waste water for refinery. The unit is composed of waste water inlet, clean water outlet, clean oil outlet, gas release ports 4 pcs, waste discharge port.
Categories:
Separation System.

DESCRIPTION

GNOWS series oil water separator separates the oil and water by gravity stratification, its main application is the separation of oily waste water for refinery. The unit is composed of waste water inlet, clean water outlet, clean oil outlet, gas release ports 4pcs, waste discharge port. It is equipped with a detachable coalescer, the oily waste enters into the coalescer, separates the oil and water, then the oil flows to the oil chamber, the water flows to the water chamber. The tank design allowed the fluids to stay in the tank for a reasonable time to ensure the complete separation of oil and water. The Tank equipped with level meter to watch the level of oil and water conveniently.

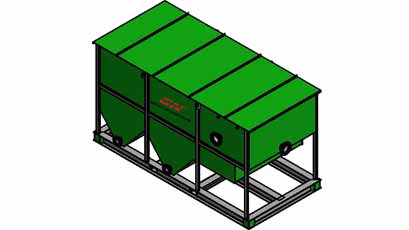

des oil water separator Oil Water Separator 22

Oil Water Separator Parameter

ModelCapacity
(m3/h)
InletWater
Outlet
Oil
Outlet
Equipment Weight
(KG)
Loading Weight
(KG)
Dimension
(mm)
GNOWS-06B 6 2’’ 2’’ 2’’ 320 1270 1325*715*1095
GNOWS-12B 12 3’’ 3’’ 3’’ 890 2780 1325*1325*1095
GNOWS-23B 23 4’’ 4’’ 3’’ 1200 4720 2085*1020*1655
GNOWS-31B 31 6’’ 6’’ 3’’ 1510 5900 2085*1325*1655
GNOWS-41B 41 6’’ 6’’ 3’’ 1800 7075 2085*1325*1960
GNOWS-55B 55 6’’ 6’’ 3’’ 1845 9890 2085*1630*1960
GNOWS-66B 66 6’’ 6’’ 4’’ 1945 12135 2365*1925*2015
GNOWS-88B 88 6’’ 6’’ 4’’ 2090 13965 2365*1925*2015
GNOWS-110B 110 6’’ 6’’ 4’’ 5035 21835 4300*1770*2060
GNOWS-131B 131 6’’ 6’’ 6’’ 5630 25730 4300*2075*2060
GNOWS-153B 153 8’’ 8’’ 6’’ 6265 29675 4300*2380*2060
GNOWS-197B 197 8’’ 8’’ 6’’ 7860 37880 4300*2685*2060
GNOWS-219B 219 8’’ 6’’ 6’’ 10105 51350 5110*1770*3325
GNOWS-262B 262 8’’ 6’’ 6’’ 10885 59725 5110*2075*3325
